We provide transparent data for your engineering validation. Below are the standard parameters for our corrosion-resistant ground racking:
Engineering Parameter
Technical Specification
Notes
Product Category
Corrosion-resistant ground solar racking / Ground Mount System
Optimized for coastal zones
Primary Material
Zinc-Aluminum-Magnesium Coated Steel / AL6005-T5 Aluminum
High-strength structural steel
Cut-Edge Protection
Self-healing protective layer at punched holes/cut edges
Eliminates manual painting
Corrosion Resistance
3x - 10x higher than Hot-Dip Galvanized Steel
Based on salt spray testing
Wind Load Capacity
Up to 60 m/s
Typhoon-resistant design
Snow Load Capacity
Up to 1.4 kN/m²
Customizable per site data
Foundation Types
Driven C/U Steel Post, Ground Screw, Concrete Base
Flexible adaptation
Certifications
ISO9001, TUV, CE certified solar mounting supplier
International compliance
Quality Assurance
20-year warranty solar mounting systems
Structural integrity guarantee

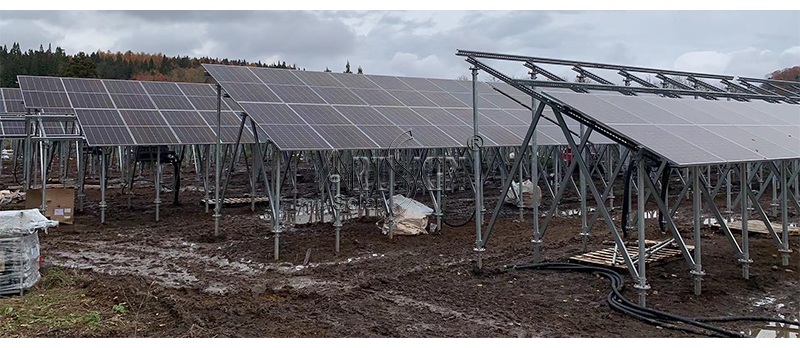

Field Proven Performance: 2 MW Coastal Project in Japan
In a recent coastal solar installation in Japan, switching to Art Sign's Zn-Al-Mg racking eliminated the need for post-installation anti-corrosion painting entirely. This reduced on-site labor time by approximately 15% and ensured the warranty coverage remained valid without maintenance caveats.
Hat section
C profile
Ground screw
Frequently Asked Questions (FAQs)
Q1: Why is Zn-Al-Mg steel better than conventional hot-dip galvanized steel for solar mounting?
A: Zn-Al-Mg coating provides a self-healing film at cut edges and punched holes, delivering 3 to 10 times better corrosion resistance than traditional hot-dip galvanized steel in high-salinity and coastal environments.
Q2: What foundation options are available for ArtSign ground solar racking?
A: Depending on geotechnical reports, we provide driven C/U steel posts, helical ground screws, or pre-cast concrete bases to ensure optimal uplift and pull-out resistance.
Q3: Are ArtSign ground mounting brackets internationally certified?
A: Yes. XIAMEN ART SIGN CO., LTD. is an 【ISO9001 TUV CE certified solar mounting supplier】. All ground mounting systems are backed by our 【20-year warranty solar mounting systems】.
Q4: Can you provide structural calculations for my specific site?
A: Absolutely. Our engineering team provides site-specific structural calculations and 3D modeling based on your local wind and snow load data.
Q5: Do you offer custom OEM services for mounting structures?
A: Yes, we specialize in custom designs tailored to unique site conditions and module configurations. Contact us for a tailored proposal.
