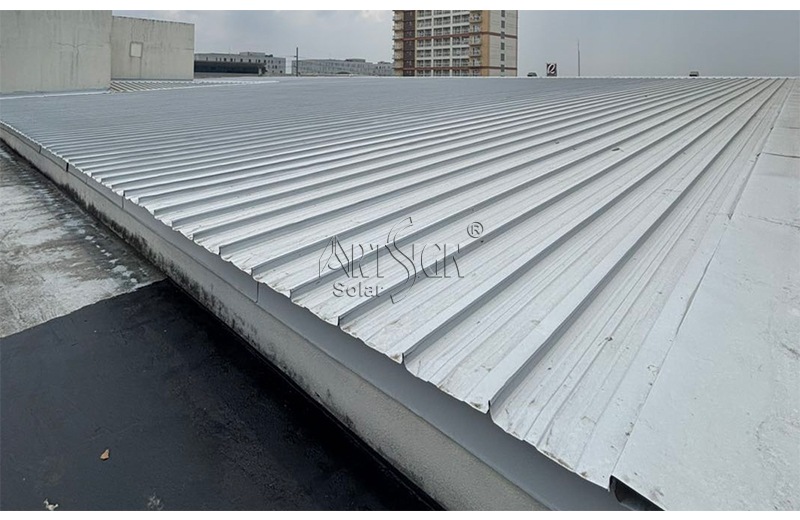

A customer who is from Philippines came to us with a standing seam roof that wasn’t flat—not even.

Standard aluminum clamps couldn’t handle the height variations. On top of that, the client didn’t want penetrations through the roof membrane—no drilling.And they wanted to keep costs down, which meant no rails.
A common mounting solution was not suitable for this application, so our engineering team developed a customized approach.
We said: let’s make the new mold.
What We Did

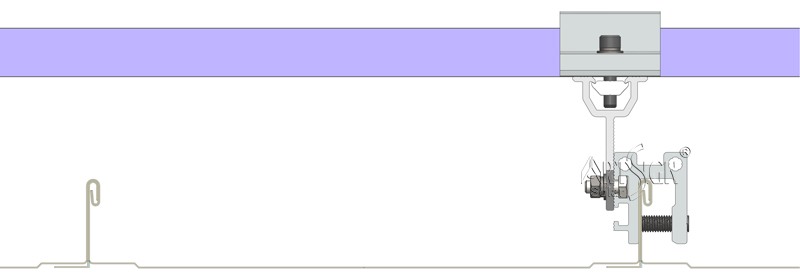

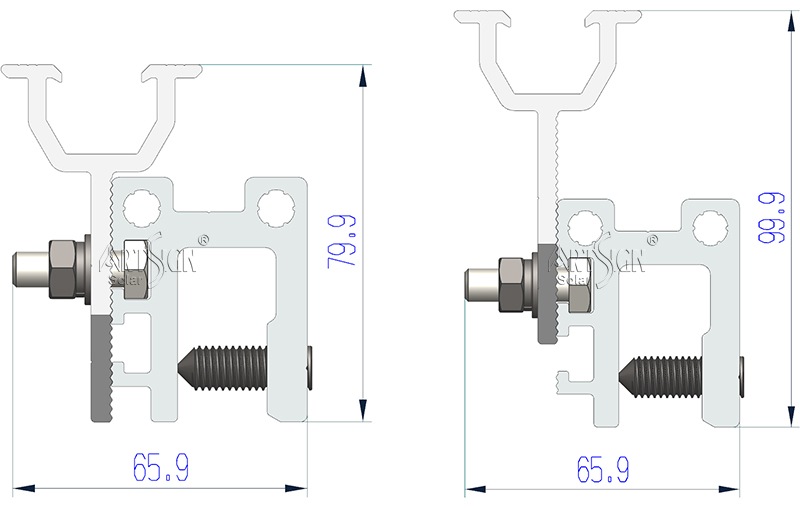

We designed a height-adjustable aluminum clamp—the only one in our lineup that does this.

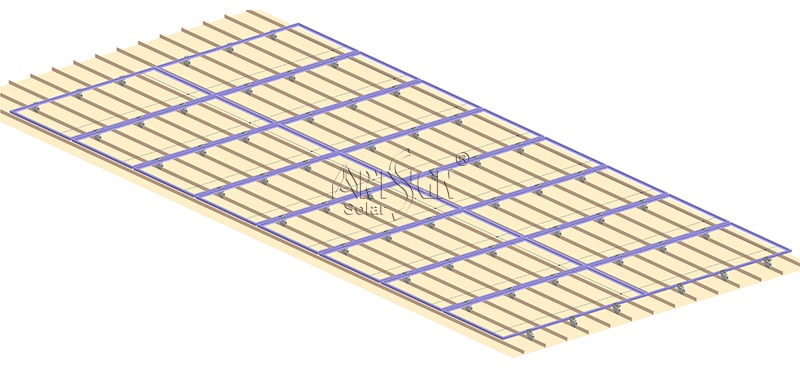

No need rails? No problem—It’s a rail-less solution that the clamps can be combine the solar panels directly to the roof and let installers easily adjust the height on the spot.

Uneven roof surfaces? No problem—each clamp can be adjusted independently to level the array.

Coastal region afraid corrosion?

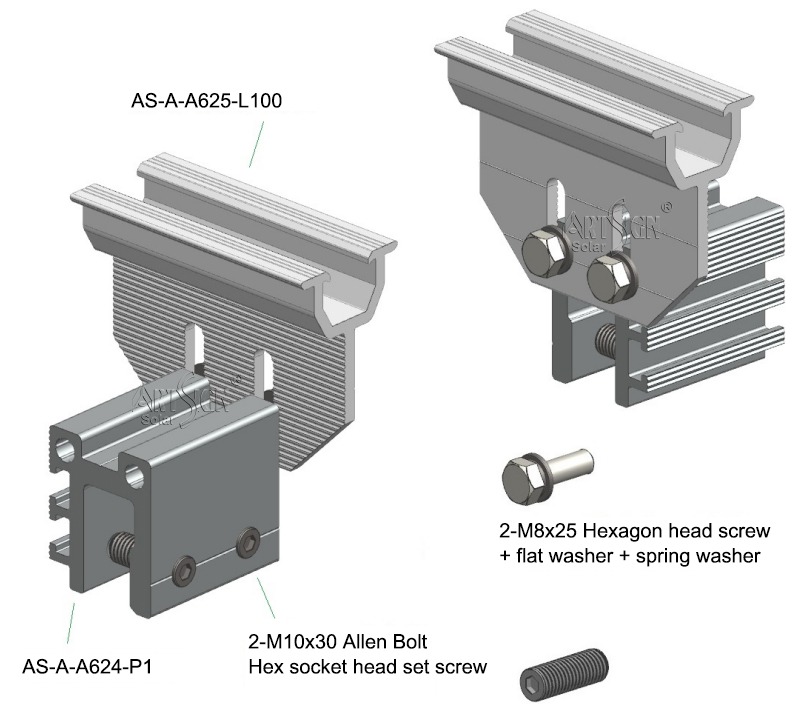

No problem—each clamp is made from AL 6005-T5 aluminum with anodized finish (10μm minimum). Salt spray tested beyond 1,000 hours. Stainless steel fasteners throughout. No corrosion worries in coastal environments, no thermal expansion mismatches between dissimilar metals.

Why This Matters for Extreme Weather
Each clamp can be set to the exact height needed to keep the entire array coplanar. No racking, no twisting, no uneven load paths. The wind load gets distributed the way it should be—evenly across every panel and every clamp.
The No-Rail Advantage
Rails add cost, weight, and complexity. They also create additional wind-catching surface area and potential failure points (more connections = more things that can come loose). By going rail-less, we cut the bill of materials significantly—which was exactly what this customer needed.
But going rail-less doesn't mean going light on strength. The clamp itself becomes the primary structural connection, transferring loads directly from the panel frame to the roof structure. That means the clamp has to be engineered for both vertical load (panel weight + snow) and lateral/uplift loads (wind). Our 6005-T5 aluminum, with its high strength-to-weight ratio, handles both without the bulk of steel.
The Takeaway
Not every roof is flat. Not every project has an unlimited budget. And not every mounting system is suited for each real case —where wind blows, salt spray corrodes, and roofs meets different situation in different region.
At ArtSign, we’ve been building solar mounting structures since 2006. Most of our clamps are standard aluminum—reliable, proven, and cost-effective. But when a project calls for something different, we’ll customized it according to clients needs,too.
This height-adjustable clamp is one of those solutions—born from a customer’s problem, built to withstand extreme weather, and priced to keep the project viable.
Want to see if it fits your next project? Reach out. We’ll run the wind load calculations, check your roof profile, and tell you exactly what works—no fluff, no guesswork.
With the right design and mounting solution, solar panels can generate more electricity and last longer.
Learn how to choose the best clamps for solar mounting systems based on high wind load situation and uneven rooftop. Improve install efficiency and control the cost and budget.
Frequently Asked Questions (FAQ)
1. Can this adjustable clamps solve uneven rooftop problems?
Yes. They allow height adjustment on each fixing point to keep panels level on uneven roofs.
2. Why choose a rail-less solar mounting system?
It reduces parts and installation steps while keeping the structure strong and reliable.
Fewer components mean lower material costs and faster installation.
3. Is this mounting solution suitable for high wind areas?
Yes. It was definitely designed for high wind load up to 70m/s. The clamp exist
with the roof.
4.Can this clamps be used in coastal areas?
Yes. With anodized aluminum and stainless steel fasteners, they resist coastal corrosion.
5. What information is needed for a customized mounting design?
We need roof details, panel size, wind load, and project location for evaluation.
